The metal push button switch is a power source that utilizes modern power electronics skills to manipulate the ratio of the time the switch is registered and turned off, and maintains a stable output voltage. The metal push button switch is usually composed of a pulse width modulation (PWM) control IC and a MOSFET. Metal button switches are necessary to have maintenance functions such as overcurrent, overheat, and short circuit in planning.

Diameter 22mm Metal Switches RD22

• RN22-A1 • RN22-A2

• RN22-B1 • RN22-B2

• RN22-B3 • RN22-C1

• RN22-D1 • RN22-D2

• RN22-E • RN22-G1

• RN22-G2 • RN22-G3

• RN22-F1 • RN22-F2

• RN22-F3

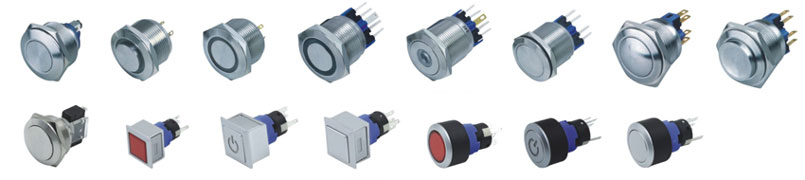

Diameter 22mm Metal Switches RD22 Figure

Part Number	Mounting Hold Size	Switch Rating	Operation Types	Head Shape	Enclosure Material	Degree of protection	Lamp Type	Head Color	Download
RD22-A1	φ22mm	5A/250VAC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	Ring Illuminated	/	NULL
RD22-A2	φ22mm	5A/250VAC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	Dot Illuminated	/	NULL
RD22-B1	φ22mm	5A/250VAC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	/	/	NULL
RD22-B2	φ22mm	5A/250VAC	Resetable Self-locking	Round	Nickel plated brass/Stainless stell	IP67,IK10	/	/	NULL
RD22-B3	φ22mm	5A/250VAC	Resetable Self-locking	High Flat	Nickel plated brass/Stainless stell	IP67,IK10	/	/	NULL
RD22-C1	φ22mm	5A/250VAC	Resetable	Flat	Nickel plated brass/Stainless stell	IP67,IK10	/	/	NULL
RD22-D1	φ22mm	5A/250VAC	Resetable	Flat	Nickel plated brass/Stainless stell	IP65,IK10	Ring Illuminated	/	NULL
RD22-D2	φ22mm	5A/250VAC	Resetable	Flat	Nickel plated brass/Stainless stell	IP65,IK10	Ring Illuminated	/	NULL
RD22-E	φ22mm	5A/250VAC	Resetable	Flush	Nickel plated brass/Stainless stell	IP65,IK10	Ring Illuminated	/	NULL
RD22-G1	φ22mm	5A/250VAC	Resetable Self-locking	Flat	PA66	IP40,IP65	/	R/O/Y/G/B/W	NULL
RD22-G2	φ22mm	5A/250VAC	Resetable Self-locking	Flat	PA66	IP40,IK65	Character Illuminated	/	NULL
RD22-G3	φ22mm	5A/250VAC	Resetable Self-locking	Flat	PA66	IP40,IP65	/	/	NULL
RD22-F1	φ22mm	5A/250VAC	Resetable Self-locking	Flat	PA66	IP40,IP65	/	R/O/Y/G/B/W	NULL
RD22-F2	φ22mm	5A/250VAC	Resetable Self-locking	Flat	PA66	IP40,IK65	Character Illuminated	/	NULL
RD22-F3	φ22mm	5A/250VAC	Resetable Self-locking	Flat	PA66	IP40,IP65	/	/	NULL
